Overwrapping Machine

Largest range of overwrapping machines in the industry.
Meeting customer needs with original technologies.

Using the concepts of automation and labor savings for further quality improvements. Kawashima's best-seller overwrapping machine for high serviceability.

GW-22MC Over Wrapping Machine

GW-4KMC Over Wrapping Machine

KXG-4000 Box Wrapping Machine

GW-22MC Over Wrapping Machine

Product category:Overwrapping Machine

GW-22MC Over Wrapping Machine

Economic type of "square-folding packaging machine" which can wrapp round products into square shape.
GW-22MC type microcomputer is installed.

Product features

  • 01

    Easy to switch products

    It can memorize maximum 50 products data (film length, each timing, heater tempreture) and easy to change the product.

  • 02

    Roll-type paper feed

    Rolling method for the film feeding. It will cut automatically in the size memorized.

  • 03

    It is easy to understand the necessary information.

    It will simply display the necessary information on the LCD.

  • 04

    Able to respond flexibly

    It can apply with the robot and each options and devices.

Purpose

Baked Manju, Steamed Manju, Bean‐Jam‐Filled Wafers, Rice Cake, Dorayaki, Mooncake, Sandwiched Rice Cracker, Rakugan, Pie,Tart,Bouche,Baumkuchen,Minikuchen,Chocolate,SlicedCake,PoundCake,Cupcake,SpongeCake,Madeleine,Cookies,Sable,Sushi,Onigiri(Including Frozen Onigiri),Tempura,Soap,Plastic Tape,Bearing,Mothball.Deodorant,Towel,Solid Fuel,Other Confectionery,Perishables,Industrial Products,Convenience Goods,Frozen Foods etc.

Specification

  • Capacity

    30pcs/min

  • Type

    Round Shape/Square Shape/Rectangular Shape

  • Size range of the package

    ◇Round Shape
    Size:φ40~90(Round)/Thickness:10~40mm

    ◇Square Shape
    Size:□40~65(Corner)/Thickness:10~40mm

    ◇Rectangular Shape
    Size:40~65(Width)/Thickness:10~40mm/Length:40~85mm

    ※ The combination of the above dimensions is limited by film dimensions.

  • Standard accessory

    Film economizer,Photo censor,Film end detect

  • Wrapping diameter

    Max.φ230mm(Inner Coreφ75mm)

  • Film size

    □105mm~□190mm (□100 Special Application.)

  • Machine dimensions

    (H)1,217mm×(W)765mm×(L)1,110mm

  • Weight of machine

    Approx.220kg

  • Power consumption

    Motor:3phases 200V 100W
    Space Heater:200W
    Point Heater:140W
    Others : Approx.100W

  • Annotation

    Machine specifications and packaging capabilities depend on product shape and characteristics, and film material. Please contact us.

GW-4KMC Over Wrapping Machine

Product category:Overwrapping Machine

GW-4KMC Over Wrapping Machine

Best seller "square-folding packaging machine" which can wrapp round products into square shape. We have installed over 10,000 units.

Product features

  • 01

    Easy timing setting

    Each timing can be set easily with the digital unit.

  • 02

    Exact pattern matching

    Even with many types of film, only by moving the position of film feeding plate and eye mark sensor, it can adjust accurately.

  • 03

    Actual size setting

    Even with plain film or continuous patterned fillm, it can set the cutting length by the actual size (mm).

  • 04

    Status display

    film length, machine speed, production amount, synchronized timing will be displayed.

  • 05

    Display of abnormal parts

    The machine will stop and show the error part when there is a heater disconnection, eye mark miss position, film roll winding end, cover openning.

Purpose

Baked Manju, Steamed Manju, Bean‐Jam‐Filled Wafers, Rice Cake, Dorayaki, Mooncake, Sandwiched Rice Cracker, Rakugan, Pie, Tart, Bouche, Baumkuchen, Minikuchen, Chocolate, Sliced Cake, Pound Cake, Cupcake, Sponge Cake, Madeleine, Cookies, Sable,Raisin Sandwich,Marron Glace,Sushi,Onigiri(Including Frozen Onigiri),Tempura,Soap,Plastic Tape,Bearing,Adhesive Plaster,Measuring Cup,Nipple of Feeding Bottle,Mothball,Deodorant,Towel,Solid Fuel,Other Confectionery,Perishables,Industrial Products,Convenience Goods,Frozen Foods etc.

Specification

  • Model name

    GW-4KMC

  • Capacity

    60~70pcs/min

  • Type

    Round Shape/Square Shape/Rectangular Shape

  • Dimensions of the package

    [GW-4KMC]
    ◇Round Shape
    Size:φ40~90(Round)/Thickness:8~30mm/Length:-
    ◇Square Shape
    Size:□40~70(Corner)/Thickness:8~30mm/Length:-
    ◇Rectangular Shape
    Size:28~70(Width)/Thickness:8~30mm/Length:40~100mm

    ※ The combination of the above dimensions is limited by the paper dimensions.

  • Standard accessory

    Film economizer,Photo censor,Film end detect

  • Packaging materials

    Moisture Proof T.C.,Rayon Paper/PE,Laminated Paper/PE,Aluminum Foil laminated paper,Vacuum Metallize(Moisture Proof T.C.base) ,KOP(20~30μ),PE(30~35μ),HDPE, etc.

    ※Depending on materials, special specification and terms would be applied.

  • Wrapping diameter

    Max.φ280mm(Inner Coreφ75mm)

  • Paper size

    □100mm~□190mm

  • Machine dimensions

    (W)1,535mm×(H)1,255mm×(L)1,780mm

  • Weight of machine

    Approx.530kg

  • Power consumption

    3phases 200V/20A/4kW

  • Option

    Dual film roll stand・Extra Former A'ssy・Others, Depending on requests.

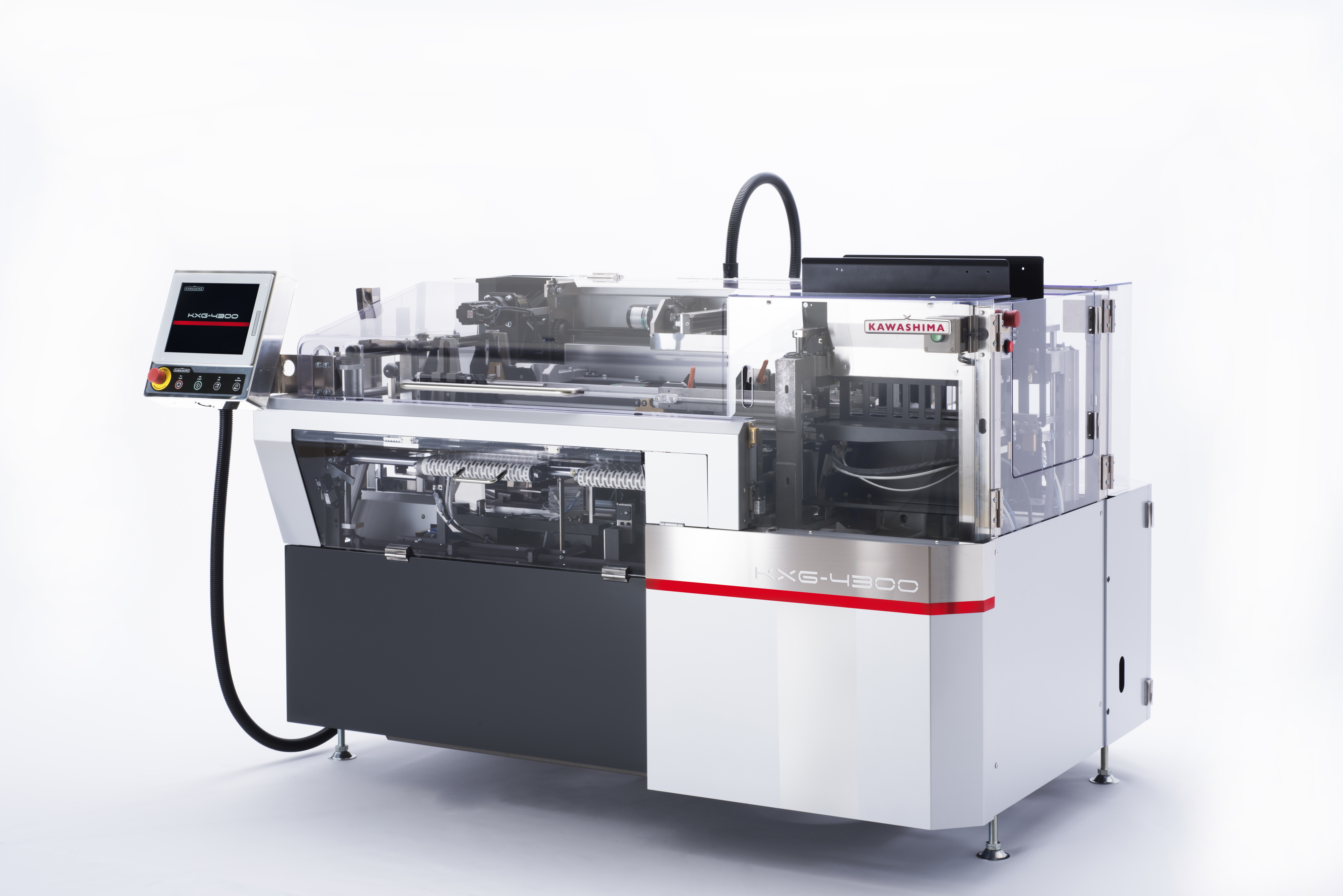

KXG-4000 Box Wrapping Machine

Product category:Overwrapping Machine

KXG-4000 Box Wrapping Machine

A multifunction compact design with the concept of automation and labor saving. This is an overwrap packaging machine "Azette" which realized excellent operability, maintenance and versatility.

Product features

  • 01

    Beautiful Packaging Finish

    Spray gun has been applied to blow glue. It realizes certain sealing and beautiful packaging.

  • 02

    Reduction of cleaning time

    Cleaning related to glue, which took time previously, became easy because of the spray gun.

  • 03

    Easy maintenance and improvement on safety

    Simplified drive system and clear open cover for easy and safe maintenance.

  • 04

    Easy operation

    High cost performance and easy operation. Multi functional overwrapping machine that wraps products speedy and beautifully.

Purpose

Gift Box, Canned Product etc.

Specification

  • Capacity

    10~30rpm

  • Packaging form

    Saide fold・Under fold convertible

  • Products to be packaged

    Rectangular box(Less than 2kg)

  • Resizing method

    Pre-set Memory Auto size change

  • Bonding method

    Colde Glue(Designated glue only)

  • Product dimensions

    Length:110~450mm/Width:65~350mm/Thickness:20~125mm

  • Machine dimensions

    (H)1,312mm×(W)1,687mm×(L)2,300mm

  • Weight of machine

    1,200kg

  • Power consumption

    3phases 200V 15A 3kW

  • Air consumption

    0.5Mpa Approx.300NL/min

  • Option

    Discharge Device ,Labeling machine ,Auto Feeidng device,Date Printer

  • Annotation

    If the length, width, and height are all maximized, packaging may not be possible depending on the paper size.
